Jaltest 16.1 Available to Download Now

The First release of 2016 see’s massive diagnostic improvements yet again.

Vehicle coverage has seen significant additions to Truck,Coach & Bus, Trailer, Agv and LCV.

Jaltest keeps improving and expanding diagnostics functions for all vehicles from the main brands.

(*) Errors with TroubleShooting without taking into account the different systems associated to the models.

NOTES:

– Apart from this numbers, new special and expert mode functions, such as calibrations, have been added. New info is also included (system displays, manual diagnosis processes, etc.)

– The version 16.1 requires a new expert mode.

– The brand CNHTC- SINOTRUK is the new addition to this version.

– From this version, the update process has been integrated in the tool using a download manager, so with one click the user can download the update and install it.

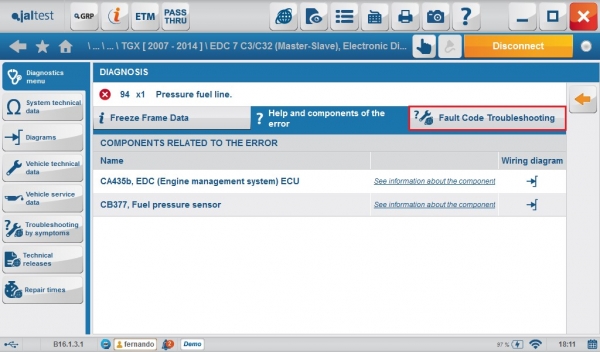

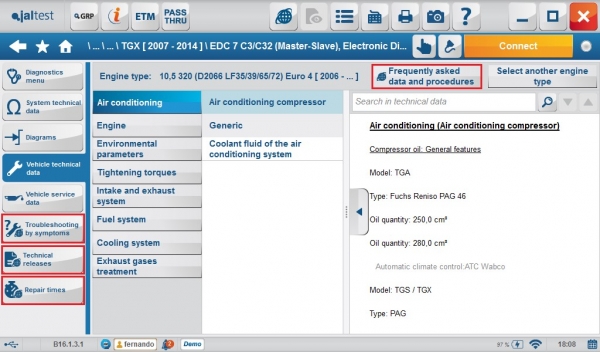

2.1. Jaltest Soft 16.1, new functions

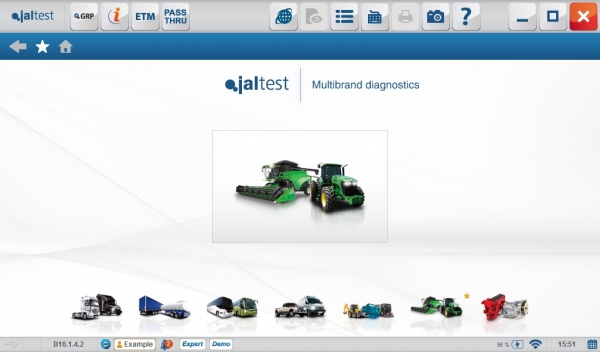

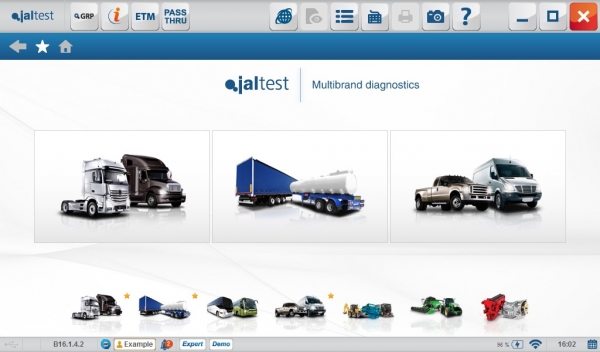

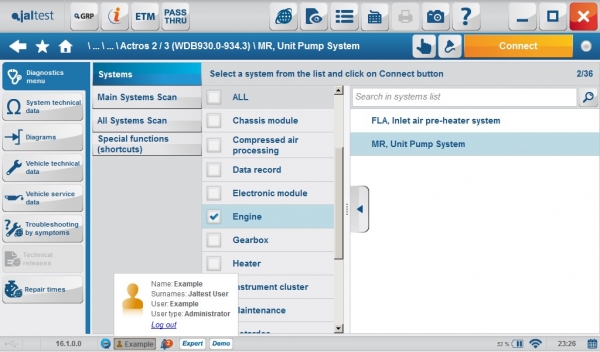

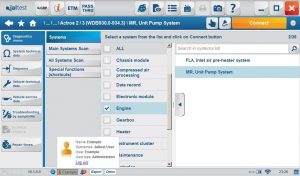

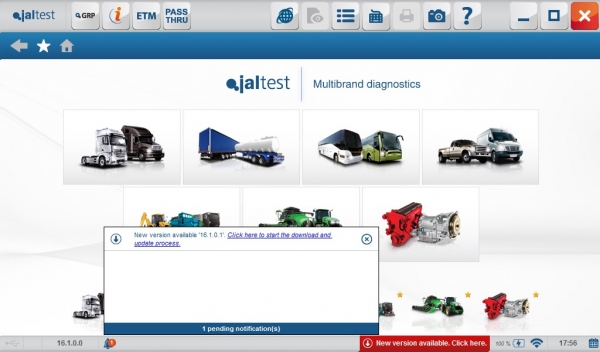

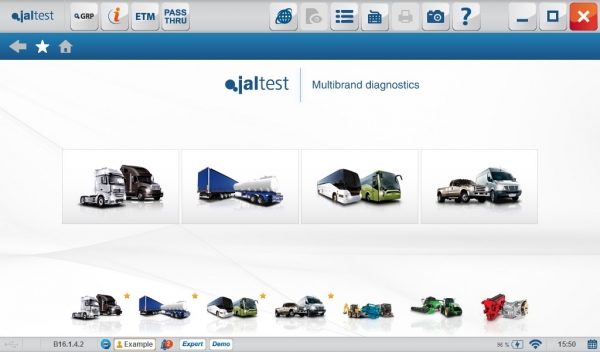

2.1.1. New main screen (Home window)

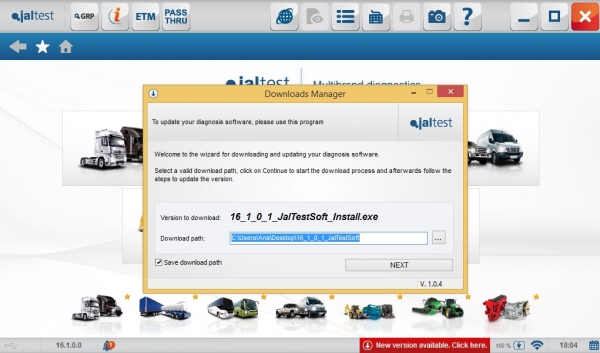

2.1.2. Update Download Manager integrated in the software

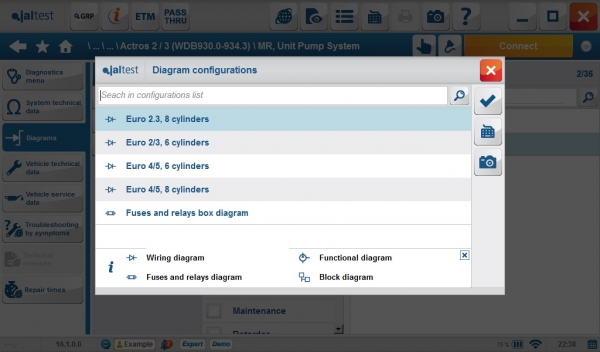

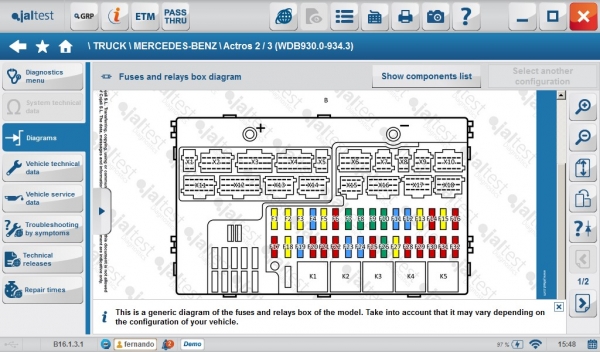

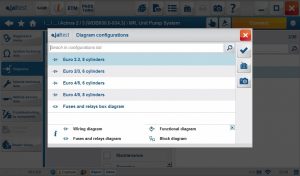

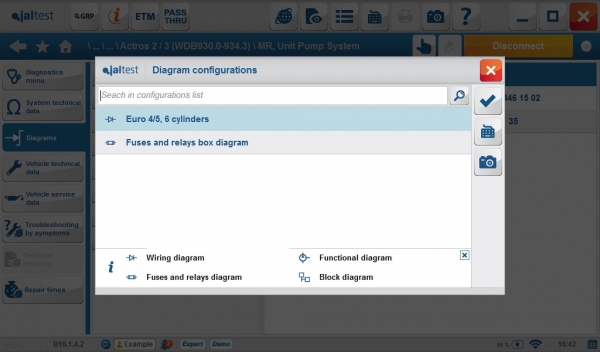

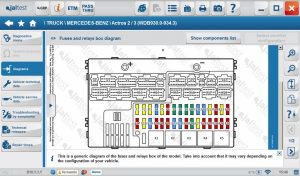

2.1.3. New type of wiring diagrams: Fuses and relays box diagram

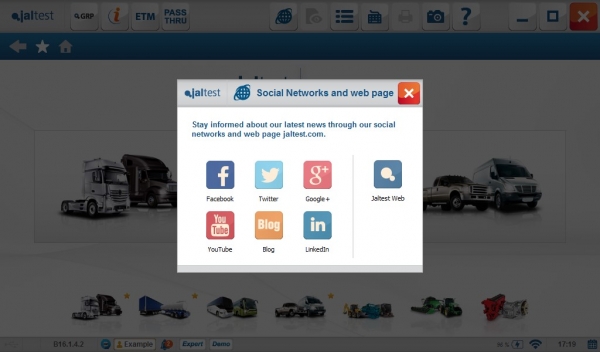

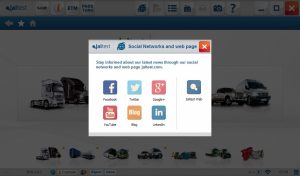

2.1.4. Direct access to all social networks

2.1.5. New icons to indicate online functions

2.1.6. Automatic selection of the wiring diagram depending on the system specific data after connection

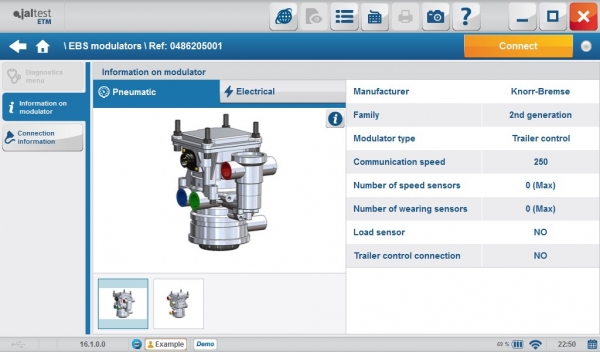

2.2. ETM

2.2.1. ETM Report preview

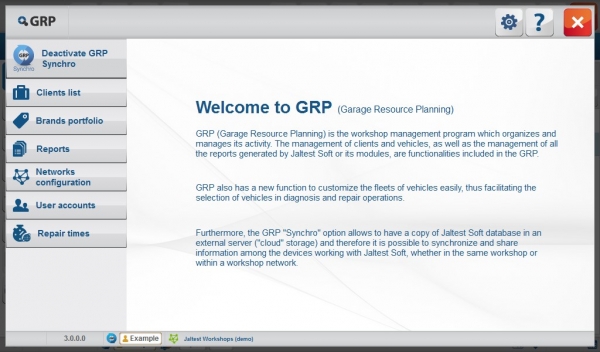

2.3. GRP

2.3.1. Repair Times function integrated in GRP

2.3.2. Jaltest Soft log out session for different user

Note: This is just a summary of the most important information about this new version. For further details, please visit Jaltest Report.

3.1. DAF Trucks

Relevant content summary

– Fuses and relays box for DAF XF105 and XF95 models.
– TroubleShooting by error for the engine system ECS-DC5 of LF Euro 5 Series.
– Wiring Diagrams and technical data have been updated in some systems.
– ALS-S DAF, Alarm System. New wiring diagram!!

Coverage improvement, new systems and functions

– Important control of new references and diagnosis variants for several systems:

– Wabco EBS Gen 3, Electronic Brake System in Euro 6 models.
– VIC, Vehicle Intelligence Centre. Improvements in all VIC generations (VIC-2, VIC-2 Lite or VIC-3 Lite which is now controlling the occurrence and FFD of the DTCs too)
– Maintenance System in all models.
– … and much more, e.g.  the digital tachograph DTCO or SWS, Steering Wheel Switches.

– Euro 6 models

– New system!!  ZF Intarder EST-54 + Wiring diagrams, TroubleShooting and technical data.

3.2. IVECO Trucks

Relevant content summary

– Fuses and relays box for Eurocargo and Stralis.
– Wiring Diagrams and technical data have been updated in all Euro 6 model series.

Coverage improvement, new systems and functions

–  Euro 4/5 models

   – EDC 7 UC31, Electronic Diesel Control for Tector and Cursor engines. Operation Data.
– Knorr-Bremse ABS 6, Anti-lock Brake System. Measurements and calibration of the ESP (Electronic Stability Program).

– Euro 6 models

   – EDC 17 CV41, Electronic Diesel Control. DPF (Diesel Particulate Filter) regeneration.
– New System!! Allison 5th Gen, Automatic Gearbox for Eurocargo Euro 6.

– ZF Intarder  EST-54. Activations.

Note: The systems above can be also found in IVECO/IRISBUS buses.

3.3. MAN Trucks

Relevant content summary

– Fuses and relays box for TGA and TGX Euro 6.
– New Wiring Diagrams!!  Technical data have been updated in all Euro 6 model series.

– DM TRW, Door Module.
– TPM, Tyre Pressure Monitor.
– INS, Instrument.
– BHTC, Behr-Hella ThermoControl.
– PTM, Powertrain Module.
– LGS, Lane Guard System.

– Technical release which contains the CAN network of the TGS and TGX models.

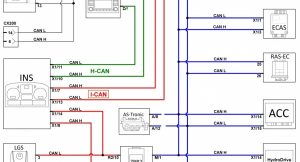

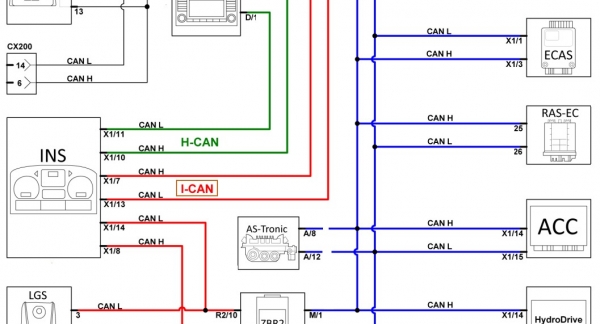

Image 3.1: Excerpt of the Wiring Diagram of the release (CAN Network)

Coverage improvement, new systems and functions

   – Wabco CBU, Central Brake Unit. Configuration, copy and paste of parameters.
– EDC 17 CV41, Electronic Diesel Control. DPF (Diesel Particulate Filter) regeneration.

Note: The systems above can be also found in MAN buses.

3.4. MERCEDES-BENZ Trucks

Relevant content summary

– Fuses and relays box for Actros 2 / 3 (WDB930.0-934.3) where wiring diagrams and technical data have been completed in comfort and optional systems like EDW, ZDS, TEL, BNT, TP, etc.
– New Wiring Diagrams!!  Technical data have been updated in all Euro 6 model series.
– HVAC, Heating, Ventilating and Air Conditioning.
– EIS, Electronic Ignition-lock System.
– ITH, Auxiliary Heater.
– TCC, Radio System.
– MCM, Motor Control Module (Common-Rail). Operation diagram.

Important! In Euro 5 models, the exhaust gas aftertreatment systemadds the release  “Rinse the AdBlue/DEF dosing module of the antipollution system” which is necessary  when the DTC 4219 is active or after replacing components. In Euro 6 models the exhaust gas aftertreatment system ACM adds TroubleShootings such as “Excessive AdBlue/DEF consumption and/or AdBlue/DEF leaking through the pump filter”.

Coverage improvement, new systems and functions

– Euro 6 models

   – MCM, Motor Control Module (Common-Rail). Important functions have been developed: compression test, operation data, etc.

   – ACM, Aftertreatment Control Module. New measurements, activations and functions such as DOC (Diesel Oxidation Catalytic Converter) regeneration or replacement of components.

   – TCM, Transmission Control Module. New configuration process and much more.

   – Wabco EBS, Electronic Brake System. New activations and tests.
– Actros, Axor, Atego

   – INS, Instrumentation. Programming Terminal-W.

3.5. RENAULT Trucks

Relevant content summary

– Fuses and relays box for Premium DXi.
– New components images and location pictures for V4 systems:
– DDM (Driver Door Module)
– FLS (Forward Looking Sensor)
– DACU (Driver Assistant Controller Unit)

Coverage improvement, new systems and functions

– Euro 6 models

   – EMS (Engine Management System). New measurements.
– TECU (Transmission Electronic Control Unit). New measurements.

3.6. SCANIA Trucks

Relevant content summary

– G, R, P Series

   – System Display for the Adblue EEC3 (Exhaust Emission Controller) system. In addition, this system includes new wiring diagrams for trucks and buses.

                – New Wiring Diagrams!!  Technical data have been updated.

– TPM, Tyre Pressure Monitoring.
– FLC, Forward Looking Camera.
– DIS 2, Distance sensor (AICC).

– GMS, Gearbox Management System. New Gearbox configurations have been added.

. ZF Ecolife
. ZF Ecomat
. GR801/R
. GR801/R with Opticruise
. GR875/R, GRS/0895/R with Opticruise
. ECA (Electrical Clutch Actuator)

Coverage improvement, new systems and functions

– G, R, P Series

– XPI, eXtra Pressure Injection. New measurements and functions:

   – Fan clutch test.
– EGR (Exhaust Gas Recirculation) test.
– Exhaust gas aftertreatment system test.

3.7. VOLVO Trucks

Relevant content summary

– Fuses and relays box for FH, FM/FMX model series.
– Wiring diagram configurations depend on the chassis number for the D16 engine type.
– New components images and location pictures for V4 systems:

   – IC (Instrument Cluster)
– EBS (Electronic Brake System)
– EMS (Engine Management System)

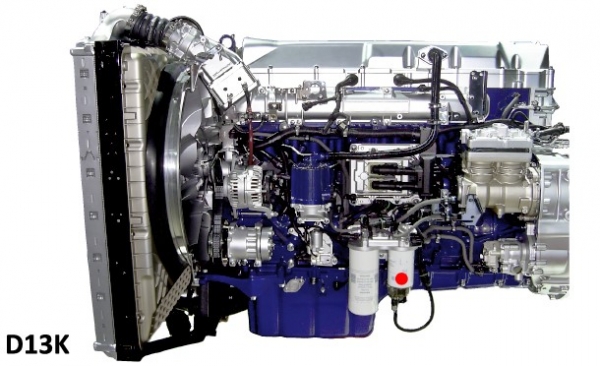

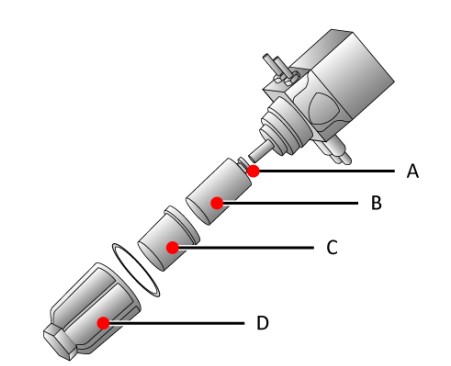

Image 3.3: Fuel heating unit / water separator location picture

Coverage improvement, new systems and functions

– Euro 6 models

   – EMS (Engine Management System). New measurements.
– TECU (Transmission Electronic Control Unit). New measurements.
– New System!! SID (Secondary Information Display)
– New System!! BBM (Body Builder Module)
– New System!! LECM (Living Environment Control Module)

Note: The systems above can be also found in VOLVO buses.

– Others

   – New system!! Airtop-2000 SD, Auxiliary Heater + Wiring diagram

3.8. Other brands and generic info

The vehicle technical information and procedures, accessed by clicking on the FAD (Frequently Asked Data) section, keep growing in Euro 6 models.

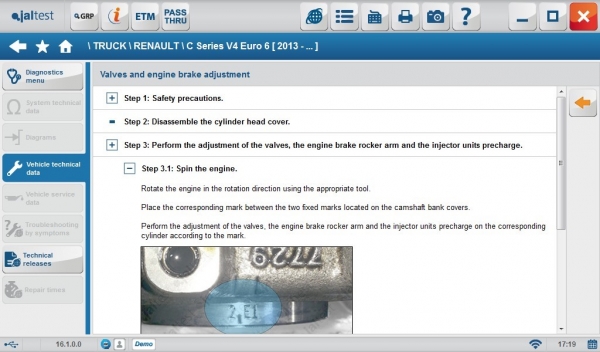

Image 3.4: Valves and engine brake adjustments within F.A.D. for Renault DTi engines

Coverage improvement, new systems and functions

– ASTRA New models!!
   – HD9 (for all Euro emissions regulations)

– TATRA
   – New classification of models.

– VW Trucks New systems!!

   – Knorr-Bremse ABS 6, Anti-lock Brake System.
– ZF V-Tronic Transmission.

– Brakes by WabcoEBS Gen 2 and the newest generation EBS Gen 3 have been updated with an important control of new references and diagnosis variants.

3.9. Trailer systems

Relevant content summary

– New configurations and improvements in technical data and the wiring diagrams in most Trailer EBS systems.

Coverage improvement, new systems and functions

– Wabco Trailer Systems

   – Trailer EBS E, EOL (End of Line) test in trailer configurations with third modulator.

   – ELEX, Electronic Extension Module. New function ‘CHECKING AND LEARNING OF PROXIMITY SENSORS’ for TailGUARD configurations without additional sensors.

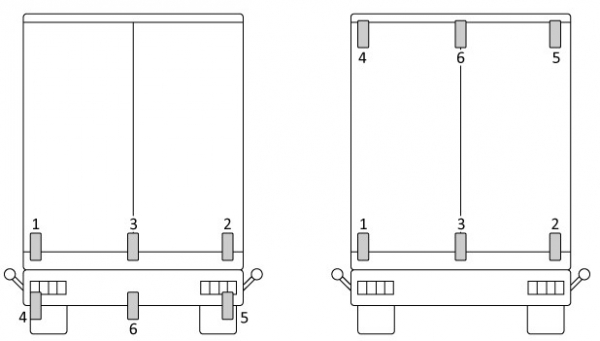

Image 3.5: Information indicating the possible configuration of the sensors

– Trailer ABS VCS, Vario Compact System. ISS (Integrated Speed Switch) signal activation.

– Knorr-Bremse Trailer Systems

   – TEBS Gen 2. New controlled references from G2.2 Standard.

Please, look at the info during the diagnosis connection process.

– Trailer Refrigeration Systems

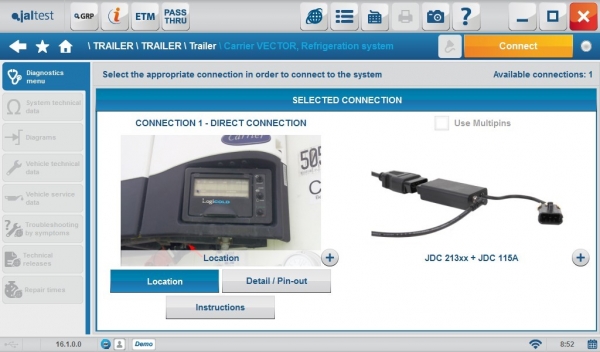

   – New  System!!  Carrier Vector

   – Smart Reefer 2/3 Controller (Service Watch).

The Cargo Watch connection was developed for last version.

3.10. LCV

Relevant content summary

– New models!!

   – Ford Transit Connect (2014 – ..)
– New MB Sprinter, Vito models.
– MB Viano.
– Citroën Jumper with engine type 4HM (2010 – …)

HYUNDAI

   – New Wiring Diagram!! EDC 16 C39, Electronic Diesel Control.

IVECO

   – Fuses and relays box for Iveco Daily model series.
– Iveco Daily  (2014 – ) New Wiring Diagrams!!  Technical data have been updated.

– IRCS Telma-RM, Retarder.
– Airbag TRW-SDM.
– IPC, Instrument Panel Control

PSA Group

   – Wiring Diagrams updated for transmissions 4HP20 (Citroën Jumper and Peugeot Boxer with engine type 8140.43s)
– New Wiring Diagram!! EDC 16 C39 (Fiat Ducato)

VOLKSWAGEN

   – The list of the errors (VAG DTC table) in the VW systems has been updated. JalTest team continues working on completing the table for the newest models.

Coverage improvement, new systems and functions

– IVECO Daily – New systems!!

   – Service System, Iveco Daily (2006 – 2012)
– IRCS Telma-RM, Retarder. Iveco Daily (2014 – … )
– Airbag TRW-SDM. Iveco Daily (2014 – … )

   – ECAS 4×2 S2000, Electronic Control Air Suspension.  New activations.

– MERCEDES – New systems!!

   – VE/EDC 1.4 (Engine types OM601 and OM602)
– SCR, exhaust gas aftertreatment system (Engine type OM651)
– PDK 4.7 Parktronic.

   – CDID3, Common-Rail. New tests such as the DPF (Diesel Particulate Filter) regeneration.
– ESP 9, Electronic Stability Program. New functions, e.g. system purge.

– PSA Group

   – New system!! Body Controller 4.3 in models 2011 onwards.
– EDC 8F3 CF5 V2, Electronic Diesel Control in Fiat Ducato (2001 – …). New activations.

3.11. Asian brands

Relevant content summary

– CNHTC-SINOTRUKNew brand!!

– HINO

   – New Wiring Diagram!! Management system for J05E-TP engines.

– ISUZU

   – Technical data and  wiring diagrams have been updated for engine types (6HK1-TC, 4JJ1-TC,  4HK1-TC, etc.)

   – New Wiring Diagram!! AdBlue/DEF, exhaust gas aftertreatment system by Isuzu.

– MITSUBISHI FUSO

   – Fuses and relays box for Canter model series.
– New Wiring Diagram!! SSAM-SAM, Body Computer.

– NISSAN

   – New Wiring Diagram!! Hydraulic ABS. The information and the technical data have been updated. Diagnosis manual process available.

Coverage improvement, new systems and functions

– ASHOK LEYLAND

   – New System!! EDC 15 VM+, Engine Diesel Control.

–  HINO

   – New System!! BCU, Burner Control Unit.
-The Hino engine systems have been updated with an important control of new references and diagnosis variants. In addition, the system for J05E-TP engines adds new activations and important tests such as the DPF (Diesel Particulate Filter) regeneration.

– MITSUBISHI FUSO

   – New System!! Management system for 6M60 engine (K-Line).

– NISSAN

   – EDC ECCS, Electronic Diesel Control. DPF (Diesel Particulate Filter) regeneration.

Note:  Also, important management systems like EDC 17 CV44, EDC 17 CV54 or EDC 7 UC31 for WEICHAI engines which are installed in models from FAW, FOTON, SHACMAN, etc. have been developed.

3.12. Buses

Relevant content summary

– ALEXANDER DENNIS

– New classification of models.

– MERCEDES New Models!!

   – Minibus Series (Sprinter City, Sprinter Transfer, etc.)
– Euro 6 vehicles (Tourismo, Travego, Integro, Conecto, OC 500 RF & C 500 LE)

– SCANIA New Models!!

   – K 310 UB with CNG engine.

– VAN HOOLNew Models!!

  – A330 Euro 6

– SOLARIS New Models!!

   – SOLARIS URBINO Euro 6

– VOLVO New Models!!

   – CNG models with new engine types and INFO.
– Articulated buses.

Coverage improvement, new systems and functions

– IVECO/IRISBUS

Diagnosis manual process  through the instrument cluster has been added for all models with the following instrument panel: Afficheur 2000, IC SPR1 and Actia MultiC.

   – New System!! Retarder Voith Vera R133-2.
– New System!! Actia MultiC, Instrument Panel.

In Euro 6 models:

   – New System!! Knorr-Bremse EBS 5, Electronic Brake System.
– New System!! Voith DIWA 6 Automatic Transmission through OBD connector socket.
– Knorr-Bremse ELC 5, Electronic Level Controller. Activations and calibration process of the height sensor.

– MERCEDES

Diagnosis manual process through the instrument cluster has been added for MB buses.

 New Systems!!

   – AGN DIWA 5 E 300 Automatic Transmission through OBD connector socket.
– TCMZ Ecolife, Automatic Transmission.
– EAPU, Electronic Air Process Unit.
– RKM, Recuperation Module.
– LG LIN/CAN Gateway.
– EBS, Electronic Brake System for buses.
– CLCS, Chassis Level Control System for buses.
– CCC, Coach Communication Center.

– VOLVO

New Systems!!

   – MID 187 VECU V2, Vehicle Electronic Control Unit.
– EMS CNG EEV, Engine Management System.
– EMS CNG Euro 4, Engine Management System.

Note: The systems above can be also found in VOLVO Trucks.

– VW buses

   – New System!! ZF Ecolife, Transmission.

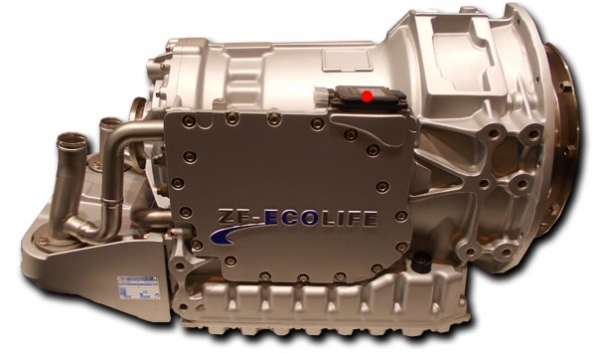

Image 3.7: ZF Ecolife Transmission

4.1. JDC 115A, Carrier
